11 14 151 Replacing crankshaft seal on transmission side (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Magnet wheel (1) is magnetic.
Keep magnet wheel (1) in a plastic bag away from metallic debris.

Remove magnet wheel (1) from crankshaft.

Installation note:

Check the fitting sleeve for damage.

Note the installation position of the magnet wheel.

Fig 1: Identifying Magnet Wheel On Crankshaft
G09919701Courtesy of BMW OF NORTH AMERICA, INC.

Release screw on pulse sensor (1).

Slide PULSE SENSOR (2) upwards.

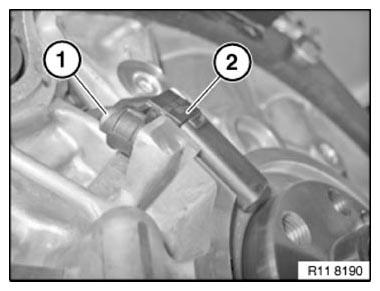

Fig 2: Identifying Pulse Sensor And Screw
G09919702Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Drill size maximum 2, 5 mm.
Remove metallic debris immediately.

Drill a hole with a drill (1) in the radial shaft seal (see arrow).

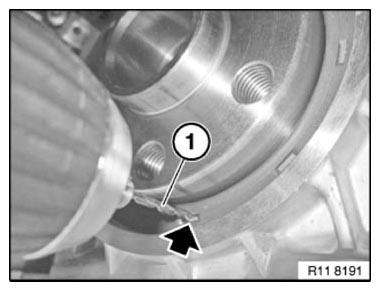

Fig 3: Drilling Hole In Radial Shaft Seal
G09919703Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Remove metal shavings from the radial shaft seal (1).

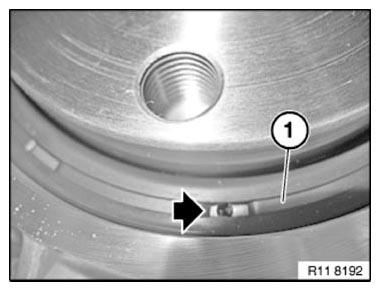

Fig 4: Removing Metal Shavings After Drilling
G09919704Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Risk of damage at the crankcase and on the running surface of the crankshaft.

Immediately carefully remove residual metallic debris.

Screw in special tool 23 0 490 in direction of arrow.

Drive out radial shaft seal with impact weight in direction of arrow.

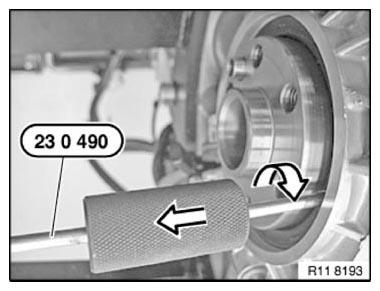

Fig 5: Driving Out Radial Shaft Seal With Impact Weight
G09919705Courtesy of BMW OF NORTH AMERICA, INC.

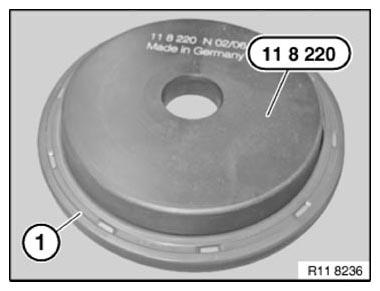

Prepare radial shaft seal (1) on special tool 11 8 220 .

Fig 6: Identifying Radial Shaft Seal On Special Tool 11 8 220
G09919706Courtesy of BMW OF NORTH AMERICA, INC.

Position the radial shaft seal (1) on the crankshaft using special tool 11 8 220 .

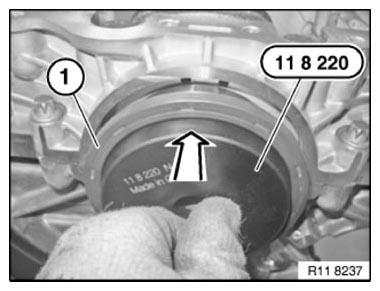

Fig 7: Positioning Radial Shaft Seal On Crankshaft
G09919707Courtesy of BMW OF NORTH AMERICA, INC.

Brush radial shaft seal (1) over the special tool 11 8 220 .

Move radial shaft seal (1) parallel up against the crankcase.

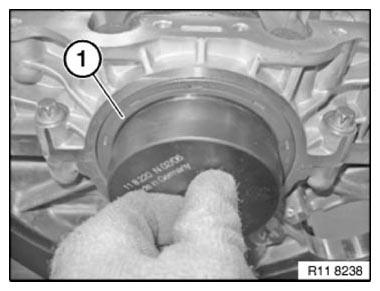

Fig 8: Identifying Radial Shaft Seal Parallel Up Against Crankcase
G09919708Courtesy of BMW OF NORTH AMERICA, INC.

Fasten special tool 11 9 182 with special tool 11 9 184 on the crankshaft.

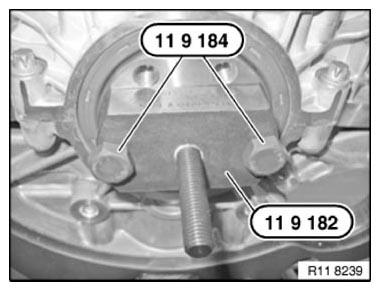

Fig 9: Fastening Special Tools On Crankshaft
G09919709Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Prepare special tool 11 9 181 for installation.

Connect special tool 2 212 827 onto special tool 11 9 181 .

Fig 10: Connecting Special Tool 2 212 827 Onto Special Tool 11 9 181
G09919710Courtesy of BMW OF NORTH AMERICA, INC.

Pull on radial shaft seal with special tools 11 9 181 and 2 212 827 in combination with special tool 11 9 183 .

Fig 11: Pulling On Radial Shaft Seal Using Special Tools
G09919711Courtesy of BMW OF NORTH AMERICA, INC.

Screw on radial shaft seal to limit position using special tool 11 9 183 .

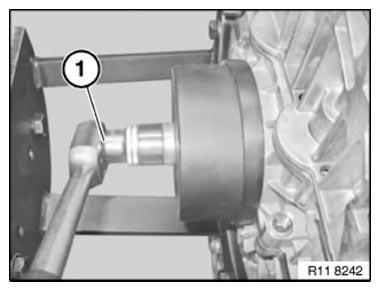

Fig 12: Screwing On Radial Shaft Seal To Limit Position
G09919712Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
