11 22 500 Removing and installing/replacing flywheel (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260 .
11 4 180 .

Necessary preliminary tasks:

Remove transmission. See REMOVING/INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) N20or REMOVING/INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) N20 ALL-WHEEL DRIVE .
Remove CLUTCH .

Automatic transmission:

Secure flywheel (1) with special tool 11 9 260 .

Unfasten flywheel studs.

Tightening torque 11 22 1AZ .

Installation note:

Flywheel (1) is secured with an dowel pin.

Clean all threads for flywheel bolts in crankshaft.

Fit new flywheel bolts.

Fig 1: Securing Flywheel Using Tool

G09920459

Courtesy of BMW OF NORTH AMERICA, INC.

Manual transmission:

Fasten dual-mass flywheel with special tool 11 9 260 .

Release flywheel bolts with special tool 11 4 180 /

Tightening torque 11 22 2AZ .

Installation note:

Flywheel is secured with a dowel pin.

Fit new flywheel bolts.

Clean all threads for flywheel bolts in crankshaft.

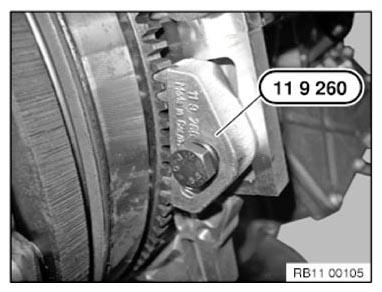

Fig 2: Identifying Special Tool (11 9 260)

G09920460

Courtesy of BMW OF NORTH AMERICA, INC.

Remove flywheel.

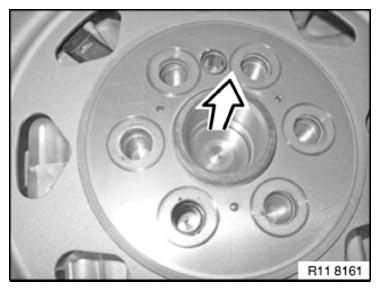

Fig 3: Removing Flywheel

G09920461

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to dowel pin.

Ensure installed position of magnet wheel is correct.

Fig 4: Identifying Magnet Wheel

G09920462

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
