11 00 598 Removing and installing engine on front axle (S63) with GS7D36SG transmission

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 2 390 .
11 0 000 .

Necessary preliminary tasks:

Remove FRONT AXLE WITH ENGINE AND TRANSMISSION .

Screw fixtures (20) onto table lift at a suitable location.

Move screw adapter (30) with plate (80) up against the transmission oil sump (1).

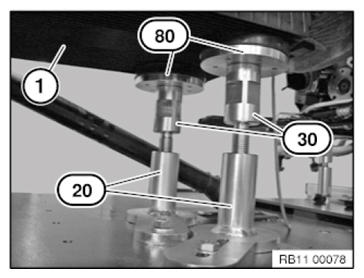

Fig 1: Identifying Transmission Oil Sump, Fixtures, Plate, And Screw Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove retaining clip (2).

Fig 2: Identifying Retaining Clip And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Loosen the hydraulic lines (2).

Installation note:

Replace sealing rings.

Recycling:

Catch and dispose of escaping oil with auxiliary materials.

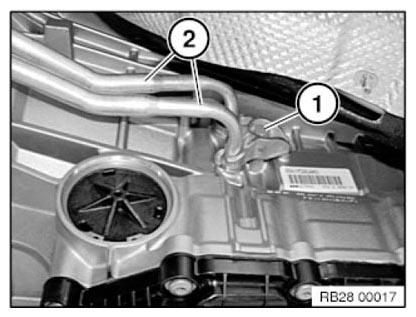

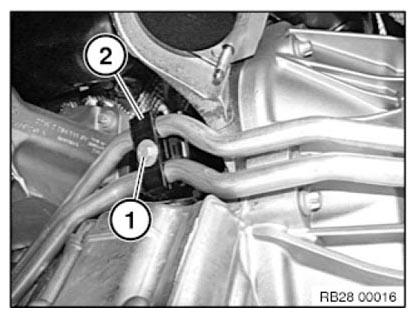

Fig 3: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable clip (1) from gearbox.

Release screw (2).

Remove pulse sensor for crankshaft sensor (3).

Disconnect connector (4).

Tightening torque 13 62 4AZ .

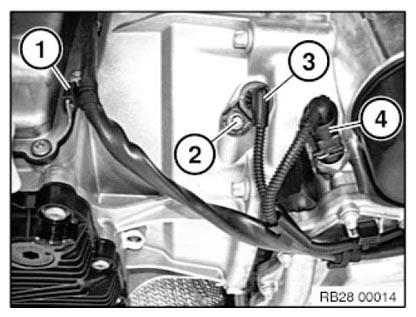

Fig 4: Identifying Crankshaft Sensor, Cable Clip, Screw, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip transmission wiring harness (1) from holder (2).

Release screws (3) and remove protective plate (4).

Release transmission connector.

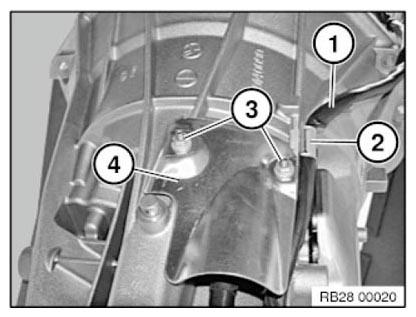

Fig 5: Identifying Transmission Wiring Harness, Holder, Screws, And Protective Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock central transmission plug (1) by turning and disconnect.
Do not touch pins.
Release cable from brackets.

Operations are described in:

NOTES ON MECHATRONICS .

IMPORTANT: Read and comply with important note.

Installation note:

Pay attention to the routing and length of the wiring harness.

Fig 6: Unlocking Central Transmission Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing cup (1).

Fig 7: Inserting Special Tool (24 2 390) In Sealing Cup

Courtesy of BMW OF NORTH AMERICA, INC.

Release all screws on transmission.

Tightening torque:

M8x50: 19 Nm
M10: 38 Nm
M12: 66 Nm

Installation note:

Screws have different lengths.

Note installation position.

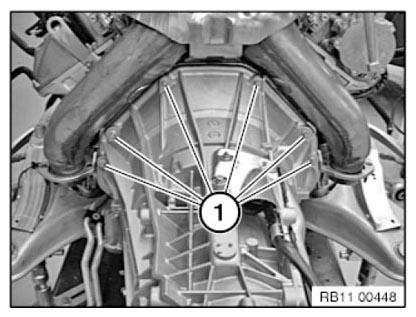

Fig 8: Identifying Screws On Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque:

M8x50: 19 Nm
M10: 38 Nm
M12: 66 Nm

Make sure the rubber seal (2) is fitted correctly when removing and installing the transmission.

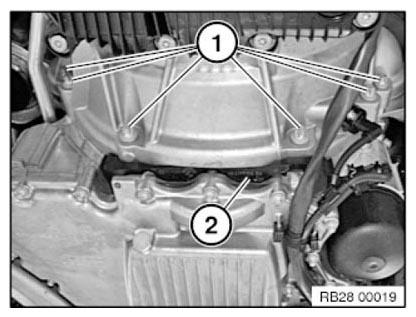

Fig 9: Identifying Rubber Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly raise engine with workshop crane and special tool 11 0 000 .

This simplifies removal and installation of transmission.

Fig 10: Raising Engine with Workshop Crane and Special Tool 11 0 000

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Capture emerging transmission oil with a suitable drip tray (1).

Disconnect transmission (2) from engine.

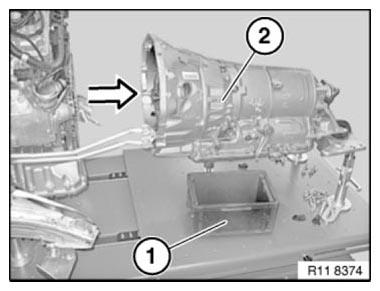

Fig 11: Disconnecting Transmission From Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Raise engine approx. 10 mm with cross member.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 12: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine from front axle with workshop crane and special tool 11 0 000 .

Mount engine on ASSEMBLY STAND .

Fig 13: Raising Engine with Workshop Crane and Special Tool 11 0 000
