11 22 513 Replacing roller bearing for dual-mass flywheel (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

21 2 051 .
21 2 052 .

NOTE: FLYWHEEL removed.

Using hydraulic press (1) and special tool 21 2 051 , press roller bearing out of dual-mass flywheel downwards on engine side.

IMPORTANT: Risk of damage:
Roller bearing must not be driven out.

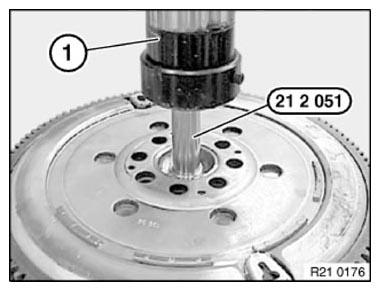

Fig 1: Pressing Roller Bearing Out Of Flywheel Using Hydraulic Press And Special Tool (21 2 051)

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052 .

Using hydraulic press (1), press roller bearing into dual-mass flywheel to limit position on clutch side.

IMPORTANT: Risk of damage:
Observe press-in instruction:

Roller bearing must not be driven in.
Roller bearing mounting force/travel monitored:
Min. 2000 N 1 mm before end of pressing in.

Max. 15, 000 N during entire press-in procedure.

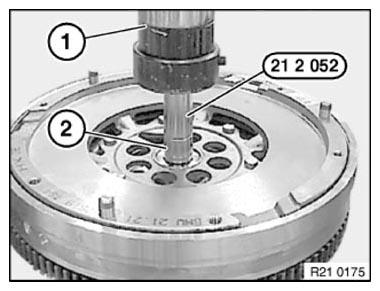

Fig 2: Pressing Roller Bearing Into Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
