11 22 500 Removing and installing/replacing flywheel (N55 Hybrid)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
High-voltage hazard!
The following must be strictly observed prior to starting work :
- Observe SAFETY INFORMATION for handling hybrid cars.
IMPORTANT:
Aluminum screws/bolts must be replaced each time they are released
.
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .
Necessary preliminary work:
- Remove TRANSMISSION .
Automatic transmission:
Secure flywheel (1) with special tool 11 9 260 .
Unfasten flywheel bolts.
Tightening torque 11 22 1AZ .
Installation note:

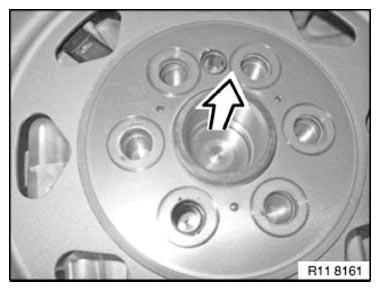

Flywheel (1) is secured with an dowel pin.
Manual gearbox:

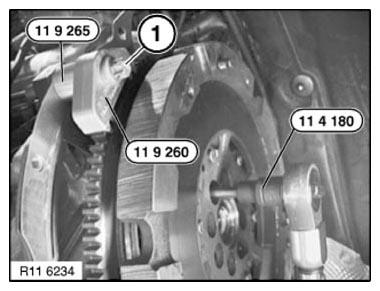

Fasten dual-mass flywheel with special tool 11 9 260 and 11 9 265 .
Release flywheel bolts with special tool 11 4 180 /
Tightening torque 11 22 2AZ .
Installation note:
Fit new flywheel bolts.
Clean all threads for flywheel bolts in crankshaft.
Installation note:
Pay attention to dowel pin.
Installation note:
Ensure installed position of magnet wheel is correct.
Assemble engine.
