11 22 500 Removing and installing/replacing flywheel (N52)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 9 260 .
IMPORTANT:
Aluminum-magnesium materials.
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .
Necessary preliminary work:
- Remove TRANSMISSION .
For vehicles with optional extra SA205 (automatic transmission):

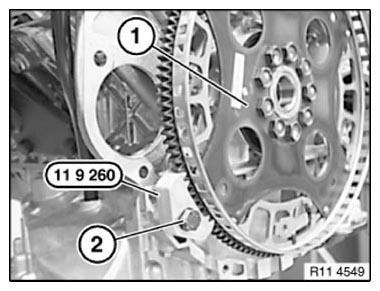

Secure flywheel (1) with existing transmission bolt (2) and special tool 11 9 260 .
Installation note:
Replace aluminum screws .
Unfasten flywheel bolts.
Tightening torque 11 22 1AZ .
Installation note:
Flywheel (1) is secured with an dowel pin.
Fit new flywheel bolts.
Clean all threads for flywheel bolts in crankshaft.
Assemble engine.
