24 00 033 Removing And Installing Automatic Transmission (GA8HP45Z)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal .
If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal .
Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Disconnect the battery . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD or 61 20... INFORMATION ON AGM BATTERY .
Remove underbody protection at front and rear. See 51 47 490 REMOVING AND INSTALLING/REPLACING UNDERBODY PROTECTION (FRONT) or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove PROPELLER SHAFT .
Loosen MONITORING SENSOR , cylinders 1-3.
Support engine with jack when removing gearbox.

Unfasten ground strap (1).

Remove retaining plates (2).

Fig 1: Ground Strap And Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable (1) from holder (2).

Fig 2: Cable And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Tightening torque: 17 22 1AZ .

Installation note:

Replace sealing rings.

IMPORTANT: Keep to installation sequence.
Failure to observe this sequence will result in leaks.

1. Lower hydraulic line.
2. Upper hydraulic line.

Fig 3: Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release coolant hose (1) from holder (2) and lay to one side.

Fig 4: Coolant Hose And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at vibration damper in direction of rotation until screw (1) is visible in recess.

Release all 6 bolts of torque converter with special tool 24 1 110 .

Installation note:

Replace converter screws. Remove any remaining adhesive residue from the thread.

Tightening torque: 24 40 1AZ .

Fig 5: Torque Converter Screw

Courtesy of BMW OF NORTH AMERICA, INC.

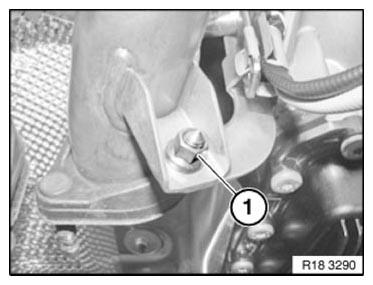

Unscrew nuts (1).

Tightening torque: 18 20 2AZ .

Fig 6: Bracket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

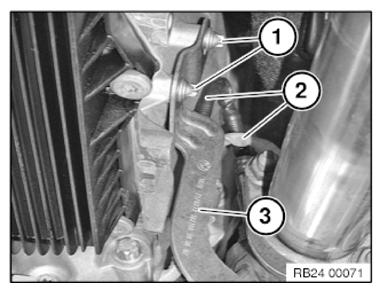

Disengage monitor sensor cable (2) from holder.

Release screws (1).

Remove exhaust bracket (3).

Tightening torque: 18 20 6AZ .

Fig 7: Monitor Sensor Cable, Exhaust Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

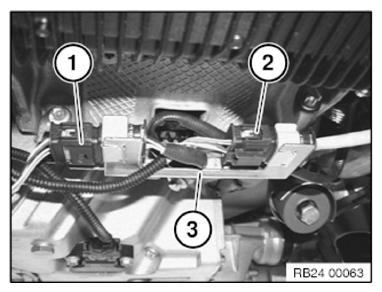

Disconnect connectors (1) and (2) from bracket (3) and detach.

Fig 8: Automatic Transmission Connectors And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3), (4) and (9).

Remove cable clip.

NOTE: Aluminum screws must be replaced.

Tightening torque: 24 00 1AZ/2AZ .

Fig 9: Transmission Housing Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool (1) 24 4 161 (A) with shaped element (2) 24 4 166 as pictured.

Fig 10: Special Tool (24 4 161)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 4 160 into recess of transmission housing and clamp gently with screw (1).

Raise by turning screw (2) and clamp down.

Then tighten down screw (1).

Fig 11: Inserting Special Tool (24 4 160) Into Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) by turning.
Do not touch pins.
Release cable from brackets.
Insert special tool 24 2 390 in sealing sleeve.

Operations are described in:

NOTES ON MECHATRONICS .

IMPORTANT: Read and comply with important note.

Fig 12: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left and right of axle.

Remove cover plate (2) on left and right of axle.

Remove bolt (3) on left and right of axle.

Tightening torque: 31 10 1AZ .

Fig 13: Axle Cover Plate, Screw And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on special tool 11 8 910 .

Fig 14: Special Tool (11 8 910)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust distance (1) between cross bar and facing using nuts (2).

Nuts (2) must be screwed down in opposite direction after distance has been adjusted.

IMPORTANT: Distance: 38.5 mm

Fig 15: Cross Bar And Nuts Distance

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in GEARBOX HOLDER .

After completion of work, check transmission fluid level.

Fig 16: Supporting Transmission Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

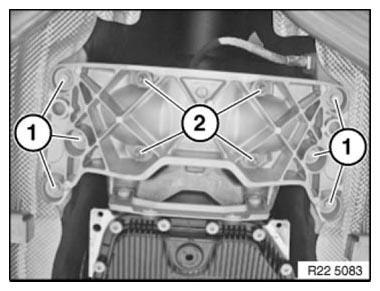

Unscrew nut (1) and bolts (2).

Remove gearbox cross member (3).

Tightening torque: 22 32 3/4AZ .

Fig 17: Gearbox Cross Member, Nut And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Installation note:

Observe screw fastening sequence without fail.

Tightening torque:, steel screws 24 00 1AZ .

Aluminum screws must be replaced.

Tightening torque and angle of rotation, aluminum screws/bolts 24 00 2AZ . (7, 8, 9, 10, 11)

Fig 18: Transmission Housing Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten down screws/bolts to specified torque.

Attach special tool 00 9 120 for angle of rotation with magnet 00 9 130 to vehicle underbody and screw down blue aluminum screws/bolts in accordance with angle of rotation.

Angle of rotation: 24 00 2AZ .

Fig 19: Attaching Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore hole (1) of driving plate must be accessible from recess on engine oil sump. Check that fitting sleeves (2...3) are correctly seated.

Replace damaged fitting sleeves.

NOTE: Graphic representation similar.

Fig 20: Driving Plate Bore Hole And Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rotate torque converter until bore hole in torque converter is flush with bore hole in drive plate.

Flange automatic transmission to engine.
