11 22 000 Removing and installing/replacing flywheel (N57 Diesel)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove transmission. See AUTOMATIC TRANSMISSION (GA8HP70Z)or AUTOMATIC TRANSMISSION (GA8HP70Z) WITH AWD .

Manual transmission:

Secure flywheel with transmission bolt (1) and special tool 11 9 260 /11 9 265 .

Release flywheel studs with special tool 11 4 180 /

Tightening torque: 11 22 2AZ .

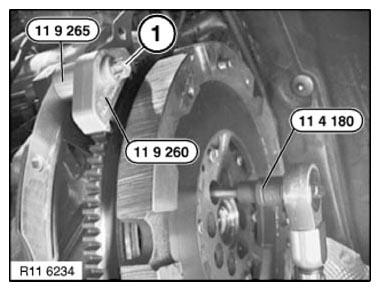

Fig 1: Identifying Existing Transmission Bolt With Special Tools (11 9 255, 11 9 260 And 11 4 180)

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission:

Secure flywheel with special tool 11 9 260 .

Unfasten flywheel studs.

Installation note:

Replace screws .

Secure bolts in sequence 1 to 8.

Tightening torque: 11 22 1AZ .

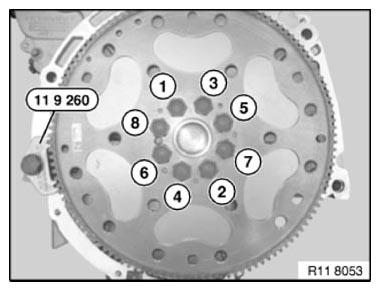

Fig 2: Flywheel Bolts Tightening/Loosening Sequence (N57)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
