11 12 112 Replacing both cylinder head gaskets (N63 O1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove left CYLINDER HEAD .
Remove right CYLINDER HEAD .

Installation note:

Check spacer bushes (1) for damage and replace if applicable.

The cylinder head gasket (2) for cylinders 1-4 and cylinders 5-8 are identical.

Cylinder head gasket (2) must depending on its styling be correctly positioned on the timing chain case.

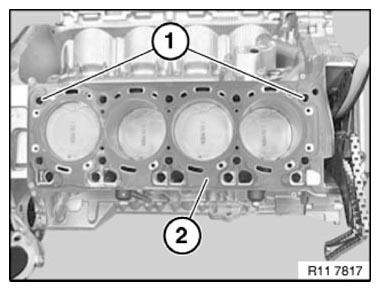

Fig 1: Identifying Fitting Sleeves And Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Repair gasket (+REP) is 0.3 mm thicker.

Check cylinder head for SURFACE EVENNESS .

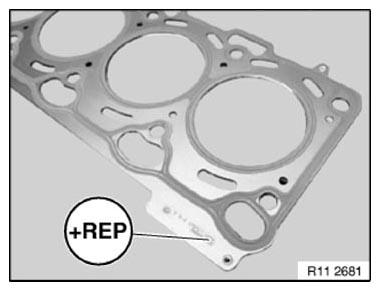

Fig 2: Identifying Cylinder Head Gasket (+REP)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
