11 12 000 Removing and installing/sealing cylinder head cover (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Aluminum-magnesium materials .
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminum screws/bolts exclusively.
Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Joining torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Remove IGNITION COILS .
Release ignition wiring harness in cylinder head cover area.
Remove right TENSION STRUT .
Remove FIREWALL , center.

Unlock and detach vent hose (1).

If necessary, pull off metal bracket (2) in direction of arrow.

Release screws (3) on electric servomotor.

Tightening torque 11 37 3AZ .

NOTE: A further screw, which cannot be seen in the graphic, must be released under the electric servomotor (4).

Release screw on electric servomotor.

Tightening torque 11 37 3AZ .

Remove servomotor (4) in direction of arrow.

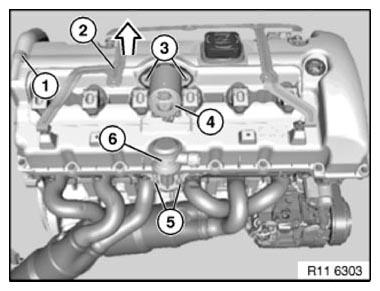

Fig 1: Identifying Vent Hose, Servomotor, Metal Bracket, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe different screw lengths.
Installation location of screws (1 and 2) is specified by the different bush shapes.

Release screws in area (1).

Tightening torque 11 12 5AZ .

Installation note:

Replace aluminum screws .

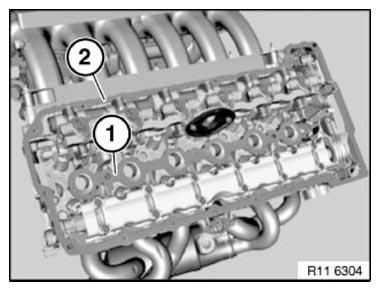

Fig 2: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release threaded bolt (2).

Tightening torque 11 12 5AZ .

Installation note:

Replace aluminum screws .

Installation note:

Slotted sleeves (2) for guiding ignition coils in cylinder head cover (1) must be replaced.

Remove slotted sleeves (2).

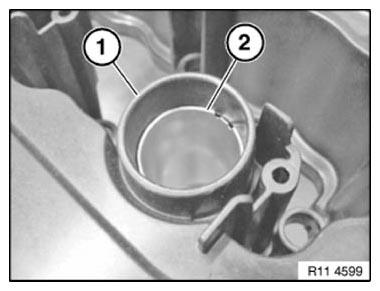

Fig 3: Identifying Slotted Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean all sealing surfaces (1 and 2).

IMPORTANT: Do not use any metal-cutting tools.

Installation note:

Replace gaskets (1 and 2) .

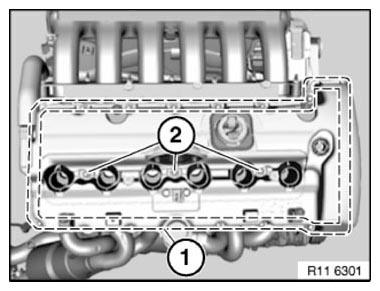

Fig 4: Identifying Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Replace ECCENTRIC SHAFT SENSOR SEALING RING (1) if necessary.

Installation note:

This operation cannot be performed with the cylinder head cover installed.

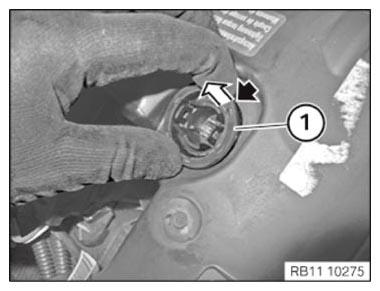

Fig 5: Removing Eccentric Shaft Sensor Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
