11 12 251 Removing and installing/replacing gasket for eccentric shaft sensor (N52)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 6 420 .

Necessary preliminary tasks:

Remove IGNITION COIL COVER .

Removal:

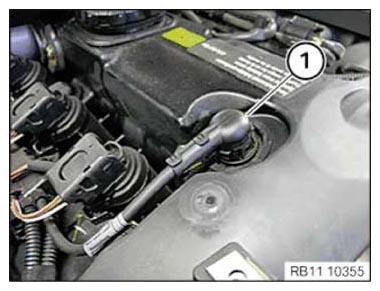

Unlock and disconnect the connector (1).

Fig 1: Identifying Connector

G09919435

Courtesy of BMW OF NORTH AMERICA, INC.

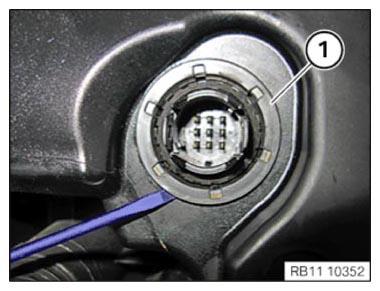

Lift gasket (1) using a suitable tool.

Fig 2: Lifting Gasket Using Suitable Tool

G09919436

Courtesy of BMW OF NORTH AMERICA, INC.

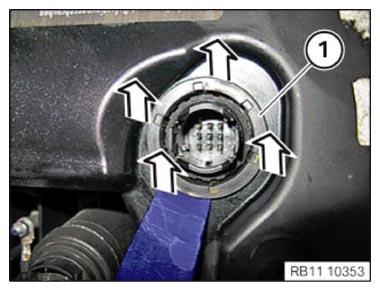

Lift out gasket (1) using a plastic tool.

Fig 3: Lifting Out Gasket

G09919437

Courtesy of BMW OF NORTH AMERICA, INC.

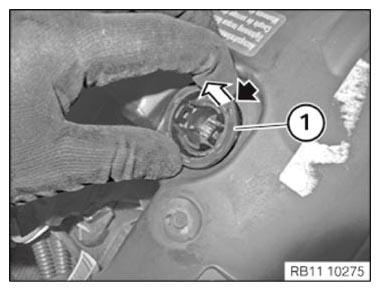

Remove eccentric shaft sensor gasket (1).

Fig 4: Removing Eccentric Shaft Sensor Gasket

G09919438

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

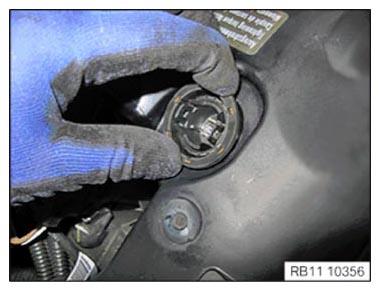

Insert gasket.

Installation note:

Coat sealing surfaces lightly with engine oil.

Fig 5: Inserting Gasket

G09919439

Courtesy of BMW OF NORTH AMERICA, INC.

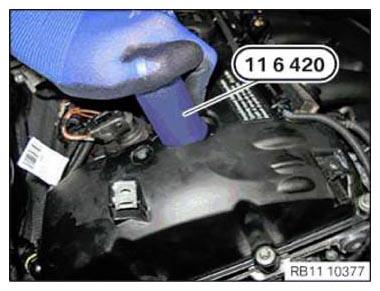

Press in gasket (1) with special tool 11 6 420 .

Fig 6: Pressing Gasket Using Special Tool

G09919440

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the plug (1).

Fig 7: Identifying Connector

G09919441

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install IGNITION COIL COVER .
