11 12 729 Checking cylinder head for watertightness (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 340 .
2 212 824 .
83 30 2 212 824

IMPORTANT: Pressure-test cylinder head to max. 3 bar.
Heat cylinder head to 60 °.
Check for bubble formation in a water bath.

NOTE: The special tools 11 4 342 and 11 4 344 are included in the set of special tools 11 4 340 .

Necessary preliminary tasks:

Remove CYLINDER HEAD .
Disassemble cylinder head. See REMOVING/INSTALLING INTAKE CAMSHAFT , REMOVING/INSTALLING EXHAUST CAMSHAFT , and REMOVING/INSTALLING ALL VALVES .

Fit special tool 11 4 342 with screws (1). Screw in knurled screw in direction of arrow.

Sealing flange must rest flat.

Fig 1: Identifying Special Tool (11 4 342)

G04751057

Courtesy of BMW OF NORTH AMERICA, INC.

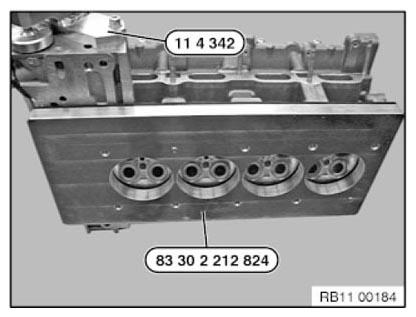

Fit special tool 2 212 824 .

Installation note:

Secure special tool with maximum 20 Nm.

Order number: 83 30 2 212 824

Fig 2: Fitting Special Tool (2 212 824)

G09919225

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 4 344 with screws (1).

NOTE: Compressed air at valve max. 3 bar.

Heat cylinder head to 60 °.

Check for bubble formation in a water bath.

Fig 3: Identifying Special Tool (11 4 344)

G04751058

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
