22 32 055 Removing and installing/replacing transmission bearing block (N55) (AWD)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 51 3 310
Necessary preliminary work:
- Remove TRANSMISSION SUPPORT BRACKET
- Release the CROSS MEMBER from the body
- Slightly lower the transmission

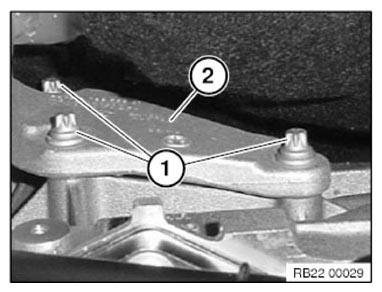

Release screws (1) with special tool 51 3 310.
Tightening torque 22 32 7AZ .
Remove transmission mounting bracket (2) on left transmission side.
