22 32 070 Removing and installing/replacing the transmission bearing support (N55, AWD)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION and retaining plate on left.
- Release the FRONT PROPELLER SHAFT from the transfer box
- Release the CROSS MEMBER from the body
- Slightly lower transmission with jack

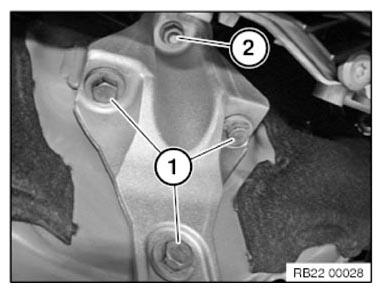

Release screws (1) and nuts (2).
Remove transmission bearing support on left transmission side.
Tightening torque 22 32 9/10AZ .
