11 12 101 Replacing cylinder head gasket (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Aluminium screws/bolts must be replaced each time they are released .
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary work:

Remove CYLINDER HEAD .
Check cylinder head for DEVIATION FROM FLATNESS .
Check cylinder head for WATERTIGHTNESS .

Remove cylinder head gasket.

Insert special tool 11 4 430 into feed pipe of oil pump.

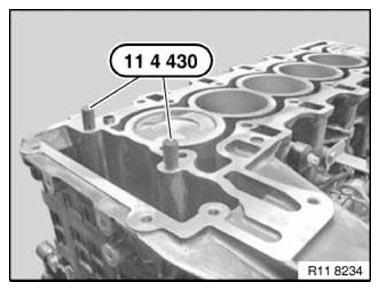

Fig 1: Inserting Special Tool (11 4 430) Into Oil Pump Feed Pipe

G11165335

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remnants of oil and dirt from blind holes (1).

IMPORTANT: Work on sealing surface on engine block and on cylinder head with special tool 11 4 470 only.
Do not use any metal-cutting tools.

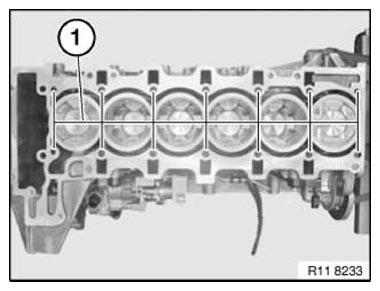

Fig 2: Identifying Cylinder Head Gasket Blind Holes

G11165336

Courtesy of BMW OF NORTH AMERICA, INC.

Check adapter sleeves (1) for damage and firm seating.

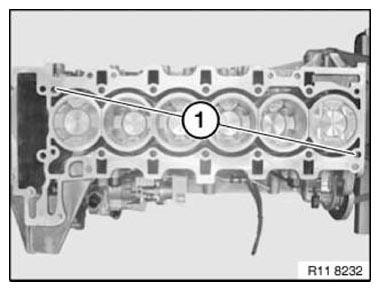

Fig 3: Identifying Cylinder Head Gasket Adapter Sleeves

G11165337

Courtesy of BMW OF NORTH AMERICA, INC.

Cylinder head gasket N55 is a beaded metal gasket.

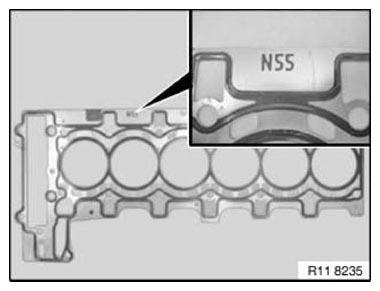

Fig 4: Identifying Cylinder Head Gasket Mark (N55)

G11165338

Courtesy of BMW OF NORTH AMERICA, INC.

Place cylinder head gasket (2) in direction of arrow on engine block.

Fix new cylinder head gasket with fitting sleeves (1).

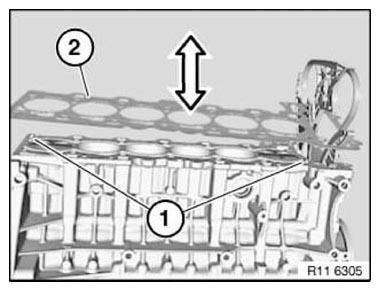

Fig 5: Installing Cylinder Head Gasket

G11165339

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
