11 12 719 Resurfacing cylinder head lower face (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CYLINDER HEAD .
Remove EXHAUST CAMSHAFT .
Remove INTERMEDIATE LEVER on intake side.

Check evenness of cylinder head lower faces with a standard straightedge (1).

NOTE: Max. deviation from flatness (longitudinal) 0.10 mm

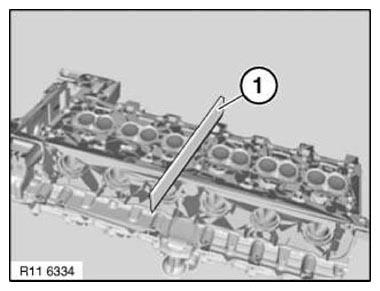

Fig 1: Checking Cylinder Head Lower Sealing Faces Evenness Using Standard Straight-Edge (Longitudinal)

Courtesy of BMW OF NORTH AMERICA, INC.

Check evenness of cylinder head lower faces with a standard straightedge (1).

NOTE: Max. deviation from flatness (transverse) 0.05 mm

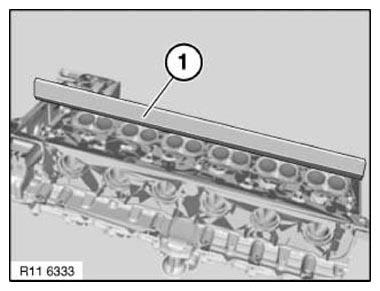

Fig 2: Checking Cylinder Head Lower Sealing Faces Evenness Using Standard Straight-Edge (Transverse)

Courtesy of BMW OF NORTH AMERICA, INC.

Check cylinder head for WATERTIGHTNESS .

Assemble engine.
