13 71 150 Removing clean air pipe (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove IGNITION COIL COVER

Release clamps (1).

Tightening torque 13 71 3AZ .

Unlock plug (2) on air-mass sensor and disconnect.

Disconnect clean air pipe (3) from rubber mount at top and remove.

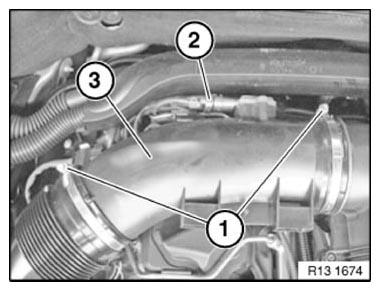

Fig 1: Identifying Clean Air Pipe And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock tank ventilation line (1) and disconnect.

Release screw (2).

Tightening torque 13 71 5AZ .

Unlock plug (3) from heating element and disconnect.

Do not loosen the vent hose at cylinder head cover (4). Risk of damage to the cylinder head cover!

Release screws at clean air pipe and disconnect vent hose from clean air pipe.

Release clamp (5).

Tightening torque 13 71 7AZ .

Remove clean air pipe.

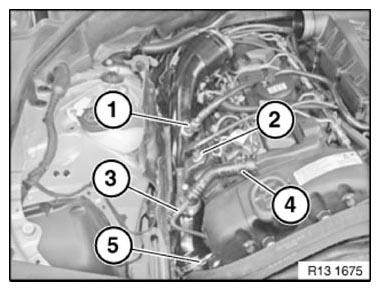

Fig 2: Identifying Tank Ventilation Line, Screw, Plug, Valve Cover, And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
