11 31 090 Installing and removing/replacing chain tensioner piston (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove AIR DUCT

Release chain tensioner (1).

Tightening torque 11 31 7AZ .

IMPORTANT: Have a cleaning cloth ready. A small quantity of engine oil will emerge after the screw connection has been released.

Make sure no engine oil runs onto belt drive.

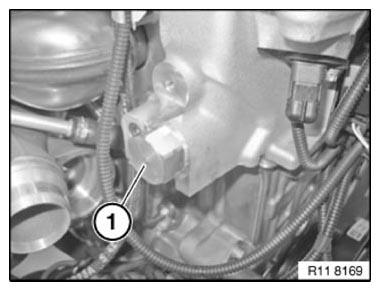

Fig 1: Identifying Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring.

If the chain tensioner is reused, its oil chamber must be drained. Place chain tensioner on a level support and slowly compress.

Repeat process twice.

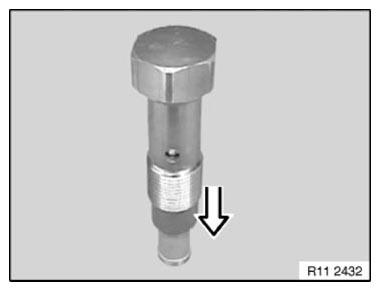

Fig 2: Compressing Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
