13 71 170 Removing air duct (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CLEAN AIR PIPE .
Remove FAN COWL .
Remove right charge-air duct.

Release screw (1).

Tightening torque 13 71 9AZ .

Release screw (2) on exhaust turbocharger.

Tightening torque 13 71 8AZ .

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach air duct (1) from turbocharger.

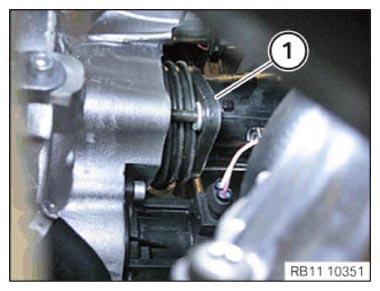

Fig 2: Identifying Turbocharger Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out air duct (1) in direction of arrow and remove.

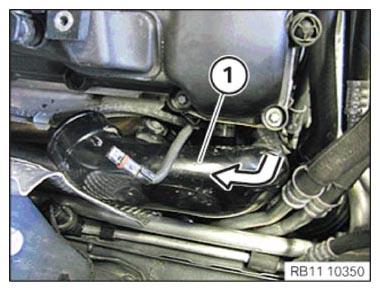

Fig 3: Feeding Out Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
