84 10 050 Removing and installing (replacing) USB hub

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove COMPLETE CENTER CONSOLE

Unlock plug connections (1) and disconnect.

Unlock plug connections (2) and disconnect.

Release screws (3) and remove USB hub (4).

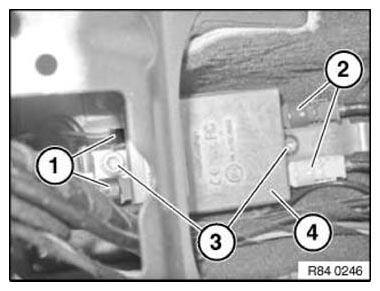

Fig 1: Identifying USB Hub Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
