51 16 165 Removing and installing complete center console

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER FOR STORAGE COMPARTMENT

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Switch off ignition before disconnecting plug connections.

NOTE: Seats are shown removed for purposes of clarity.

Remove rear cover (1) from center console (2) towards top.

Disconnect plug connection underneath.

Fig 1: Removing Rear Cover From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

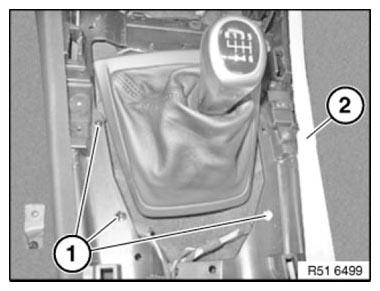

Release front screws (1).

Tightening torque 51 16 16AZ .

Unlock and disconnect cable (2).

Fig 2: Identifying Front Screws And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

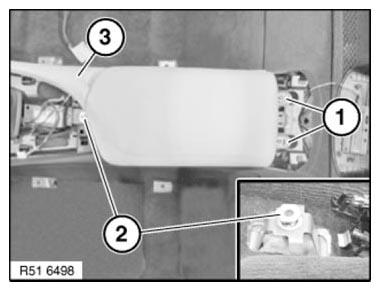

Release rear nuts (1).

Tightening torque 51 16 16AZ .

Release screw (2).

Tightening torque 51 16 17AZ .

Raise center console (3) and unlock and disconnect plug connections underneath.

NOTE: Height of attachment point can be regulated by compensating bush underneath screw connection for center console.

Fig 3: Identifying Center Console With Rear Nuts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

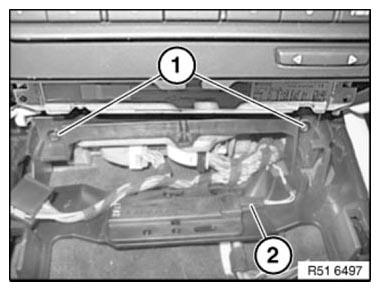

Unclip cable routing (1) from center console (2).

Raise center console (2) and unlock and disconnect plug connections on underside.

Remove center console (2).

Fig 4: Identifying Cable Routing And Center Console

Courtesy of BMW OF NORTH AMERICA, INC.
