84 21 535 Removing and installing (replacing) hands-free charging electronics (optional extra SA644)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL WAVEGUIDES .

Necessary preliminary tasks:

Remove PANEL FOR LUGGAGE COMPARTMENT PARTITION
Disconnect BATTERY NEGATIVE LEAD

Unlock plug connections (1) and disconnect.

Release all nuts.

Remove hands-free charging electronics (2).

Installation:

Make sure plug connections are correctly engaged.

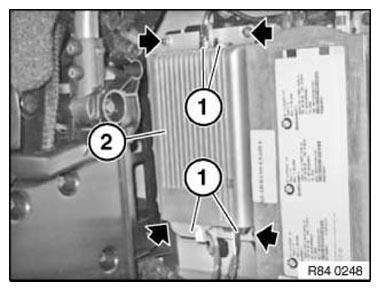

Fig 1: Locating Hands-Free Charging Electronics Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING
