51 47 140 Removing and installing/replacing panel for luggage compartment partition wall
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Move soft top into half-opened position
- Support soft top compartment lid with suitable tool
- Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL

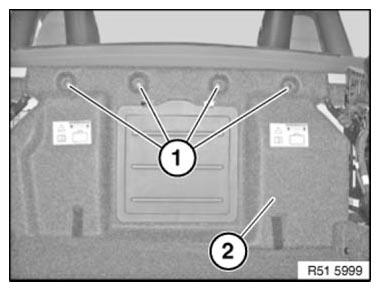

Lever out expansion rivets (1).
Remove panel for luggage compartment partition wall (2).
