35 11 000 Removing and installing complete bearing block for foot pedal

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read and comply with BRAKES, GENERAL INFORMATION .
Remove BRAKE MASTER CYLINDER
Remove left SUSPENSION CROSS-BRACE
Remove TRIM PANEL for pedal assembly
Remove CLUTCH MASTER CYLINDER from bearing block (clutch hydraulic system remains closed)

Release brake lines (1) and remove.

Installation:

Tightening torque 34 32 1AZ .

Remove non-return valve (2) in direction of arrow from brake booster.

Installation:

Check rubber seal in brake booster and replace if necessary.

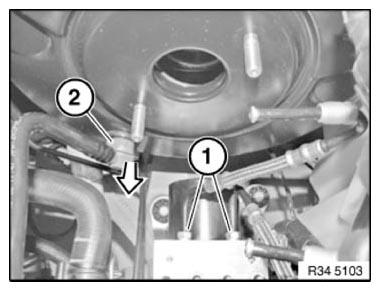

Fig 1: Removing Non-Return Valve From Brake Booster

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unhinge the recoil spring (2).

Remove retaining clip (3).

Installation:

Replace locking clip (3).

Locking clip (3) must be seated with both legs in the pin groove.

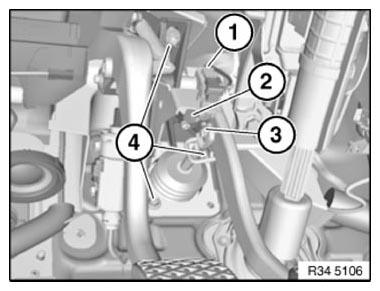

Fig 2: Identifying Recoil Spring, Retaining Clip And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (4).

Installation:

Tightening torque 35 11 1AZ .

Move brake booster a little towards engine compartment.

Feed piston rod (1) by turning bearing block out of retaining lug (2).

Installation:

Feed brake pedal in depressed position into piston rod, moving the brake booster a little towards the engine compartment.

Remove mounting block.

IMPORTANT: Do not use any force when removing and installing the brake unit; the brake unit can be damaged under certain circumstances.

Brake lines must not be bent.

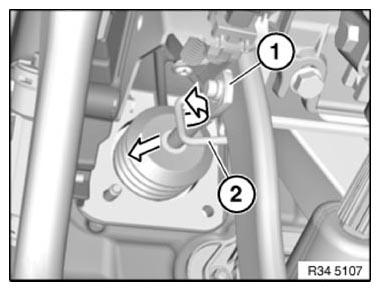

Fig 3: Feeding Piston Rod Out Of Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.
