51 71 371 Removing and installing/replacing tension strut on left or right spring strut dome
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Vehicles must not be driven without tension struts.
Driving without tension struts may damage the vehicle body.
Tension struts can be secured with screws or nuts.
Screws must be tightened to specified torque and then tightened down with special tool 00 9 120 .

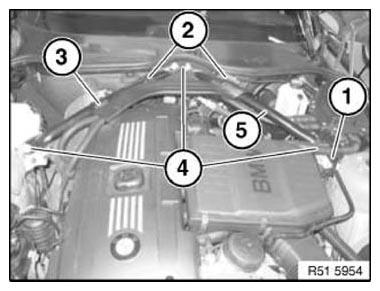

Release screw (1).
Lift out expanding rivets (2).
Remove cable holder (3).
Release screws (4).
Tightening torque 51 71 4AZ .
Installation:
Replace screws (4), tighten to specified torque and then to angle of rotation.
Remove tension strut (5).
