66 20 508 Removing and installing/replacing control unit (Park Distance Control)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT LUGGAGE COMPARTMENT TRIM PANEL

Unlock plug connections (1) and disconnect.

Lift out control unit (2).

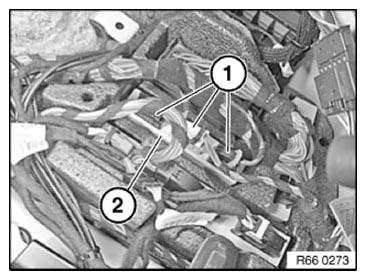

Fig 1: Identifying Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
