51 47 220 Removing and installing/replacing luggage compartment trim panel on right side panel
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

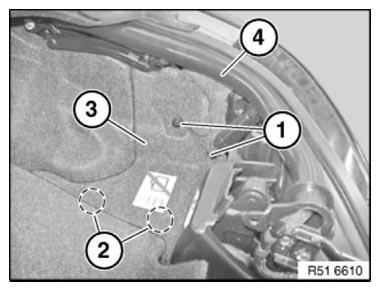

Lever out expansion rivets (1).
Feed out luggage compartment trim panel (3), unclipping at marked points (2).
Installation:
Rubber seal (4) must be correctly seated over luggage compartment trim panel (3).
