67 31 531 Removing and installing/replacing drive unit for backrest angle adjustment
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove OUTER COVER

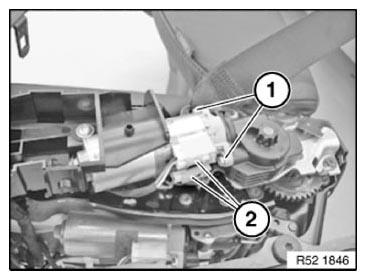

Unlock plug connections (2) and disconnect.
Release screws (1).
Remove drive for backrest angle adjustment from flange.
Installation:
Make sure drive shaft is correctly seated in gearbox.
