52 14 040 Removing and installing/replacing outer cover on front left or right seat (Normal)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT SEAT

NOTE: Picture shows installed seat by way of example.

Move backrest to full rearward position.

Unclip release tab (2) for belt anchor fitting trim (1) with plastic wedge.

Fig 1: Removing Belt Anchor Fitting Trim Release Tab Using Plastic Wedge

G09851364

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw or catch (3).

Lever lugs (1) out of holders (2).

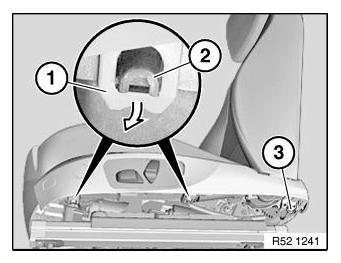

Fig 2: Removing Lugs Out Of Holders

G09851365

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover (1) could detach itself in from area with carrier section (2) from seat mechanism.

Carefully pull cover (1) with carrier section (2) in front area off seat mechanism.

Press unlocking lug (3) with screwdriver and detach cover from carrier section.

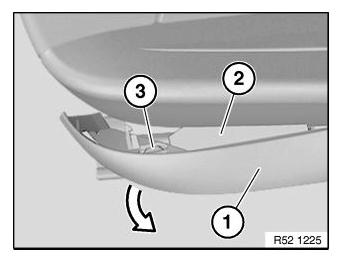

Fig 3: Pulling Cover

G09851366

Courtesy of BMW OF NORTH AMERICA, INC.

Raise lug (1) and unlock.

Reach between seat padding and cover (2) and pull cover off carrier section.

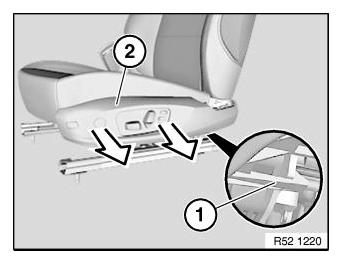

Fig 4: Pulling Cover Off Carrier Section

G09851367

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections:

Switch combination
Lumbar support
Backrest width adjustment

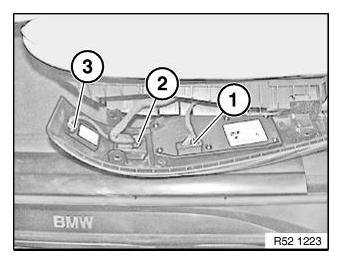

Fig 5: Identifying Switch Combination, Lumbar Support And Backrest Width Adjustment

G09851368

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips and lugs of cover must not be damaged.

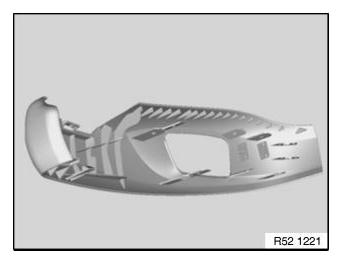

Fig 6: Identifying Retaining Clips And Lugs Of Cover

G09851369

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Unlock catches of switch housing and remove switch from cover.

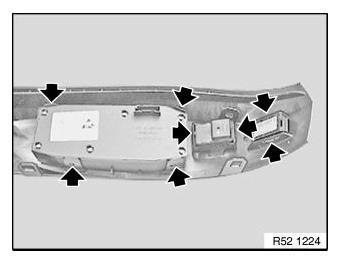

Fig 7: Locating Catches Of Switch Housing

G09851370

Courtesy of BMW OF NORTH AMERICA, INC.
