63 21 055 Replacing a socket housing for left or right rear light

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Unlock side cover (1) and remove in direction of arrow.

Remove side cover (2) in direction of arrow.

Fig 1: Removing Side Cover Trim

Courtesy of BMW OF NORTH AMERICA, INC.

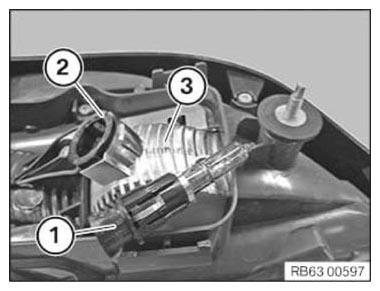

IMPORTANT: Risk of damage to the contact ring (2) on rear light (3).
Carefully pull the socket housing (1) out of the contact ring (2) on the rear light (3).
If necessary, grip at contact ring (2).

Fig 2: Identifying Rear Light Contact Ring And Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully pull the socket housing (1-3) out of the rear light (4).

NOTE:

Socket housing for brake light
Socket housing for reversing light
Socket housing for brake light/rear fog light

Fig 3: Identifying Rear Light Socket Housings

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remount BULBS .
