63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AUXILIARY BRAKE LIGHT REAR LID COVER

Lever out clips (1).

Remove auxiliary brake light (2) from rear lid cover (3).

Installation:

If necessary, replace clips (1).
If necessary, replace auxiliary brake light seal.

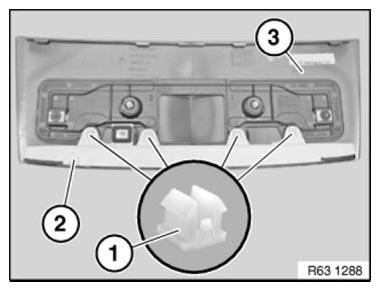

Fig 1: Identifying Auxiliary Brake Light With Rear Lid Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
