51 13 435 Removing and installing/replacing additional brake light, rear lid cover

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove REAR LID TRIM

Unscrew nuts (1).

Tightening torque 51 13 8AZ .

Unfasten plug connection (2) and disconnect.

Fig 1: Identifying Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Raise and unclip additional brake light (1) with special tool 00 9 317 .

Remove additional brake light (1).

Replacement:

Subsequent operation described in REMOVING ADDITIONAL BRAKE LIGHT .

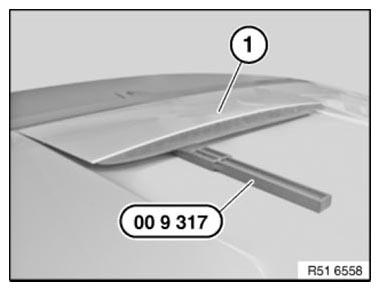

Fig 2: Removing Additional Brake Light Using Special Tool (009 317)

Courtesy of BMW OF NORTH AMERICA, INC.
