37 14 027 Removing and installing/replacing rear mounted acceleration sensor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove RIGHT LUGGAGE COMPARTMENT TRIM PANEL

Unfasten plug connection (1) and disconnect.

Release nuts (2) and remove mounted acceleration sensor (3).

Tightening torque 37 14 8AZ .

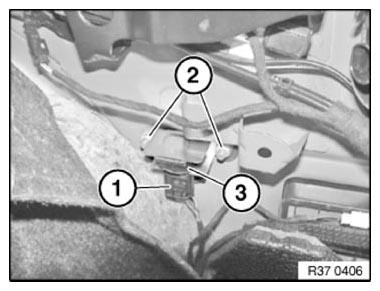

Fig 1: Identifying Mounted Acceleration Sensor Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
