37 14 017 Removing and installing/replacing front mounted acceleration sensor
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Remove FRONT WHEEL ARCH TRIM

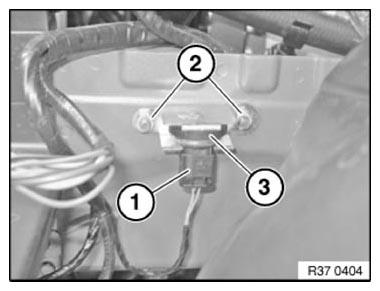

Unfasten plug connection (1) and disconnect.
Release screws (2) and remove mounted acceleration sensor (3).
Tightening torque 37 14 8AZ .
