51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Necessary preliminary tasks:

Remove FRONT WHEEL

Unscrew all bolts.

Unscrew nuts (1).

Remove cover (2).

Installation:

Make sure cover (2) is correctly seated.

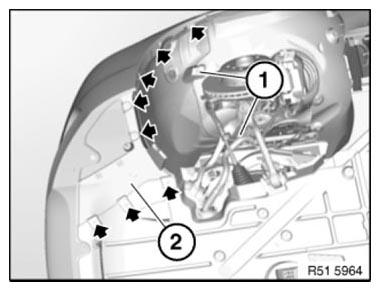

Fig 1: Identifying Wheel Arch Cover With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out wheel arch cover (2) towards bottom.

Installation:

Make sure wheel arch cover (2) is exactly seated.

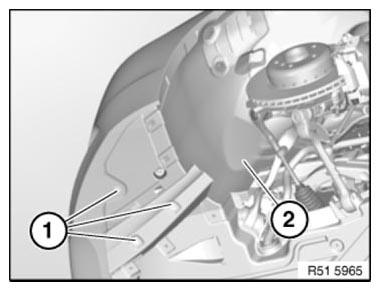

Fig 2: Identifying Wheel Arch Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
