41 62 000 Removing And Installing Rear Lid
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
Necessary preliminary tasks:
- Remove PANEL FOR REAR LID
- Disconnect all plug and socket cable connections on rear lid.
Operation is described on the left side. Right side identical.

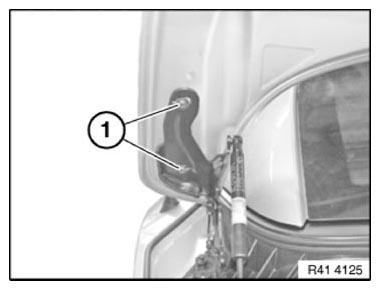

Release screws (1).
Tightening torque 41 62 1AZ .
Remove rear lid.
Installation:
Adjust REAR LID .
Replacing rear lid:

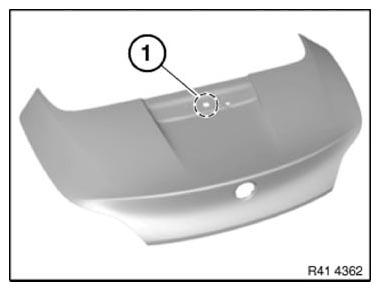

On vehicles without an additional aerial, designated opening (1) must be sealed with 40 x 40 mm masking foil.
