41 62 014 Adjusting Tailgate
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL .
The 41 00... BODY GAP DIMENSIONS . serve as the basis for adjustment work.
NOTE:

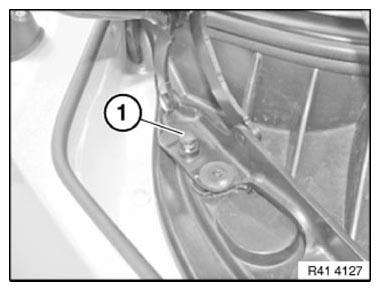

Stop screw (1) must not be damaged or missing.
The stop screw is preset and must not be used to adjust the tailgate.

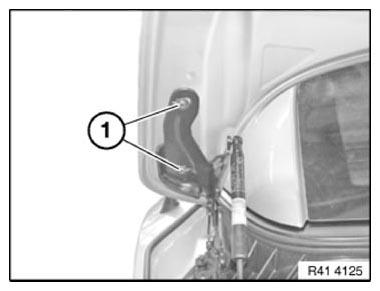

Slacken screws (1) until such stage that the tailgate can still be moved.
Adjust tailgate laterally and longitudinally.
Height adjustment of tailgate with spacer plates. If this is not sufficient, adjust KINEMATICS BOX .
Retighten all screws.
Tightening torque 41 62 1AZ .
Adjust TAILGATE LOCK .
