41 61... Checking Hinge For Engine Compartment Lid (For Vehicles With Active Pedestrian Protection System)
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

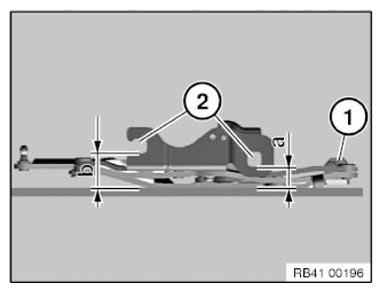

Open and close hinge (1).
Place hinge (1) on a level surface.
Check holes (2) for dimensional accuracy relative to support.
Dimension a=21 mm
Measurement b = 33 mm
| Test result |
Solution |
| Hinge is stiff |
Replace hinge |
| Faulty dimensional accuracy |
Replace hinge |
Courtesy of BMW OF NORTH AMERICA, INC.
