41 61 571 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid, (For Vehicles With Active Pedestrian Protection AFGS)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of injury.

Adhere to SAFETY INFORMATION so as to avoid a danger of injury by the actuator.

The BATTERY EARTH LEAD must be clamped off prior to work on the hinge or engine compartment lid!

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD .

Remove ENGINE COMPARTMENT LID .

Remove gasket (1).

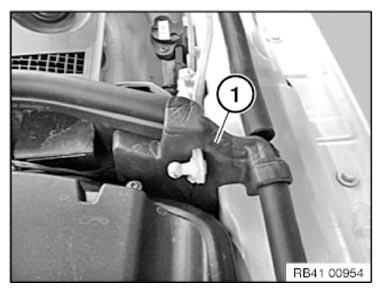

Fig 1: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

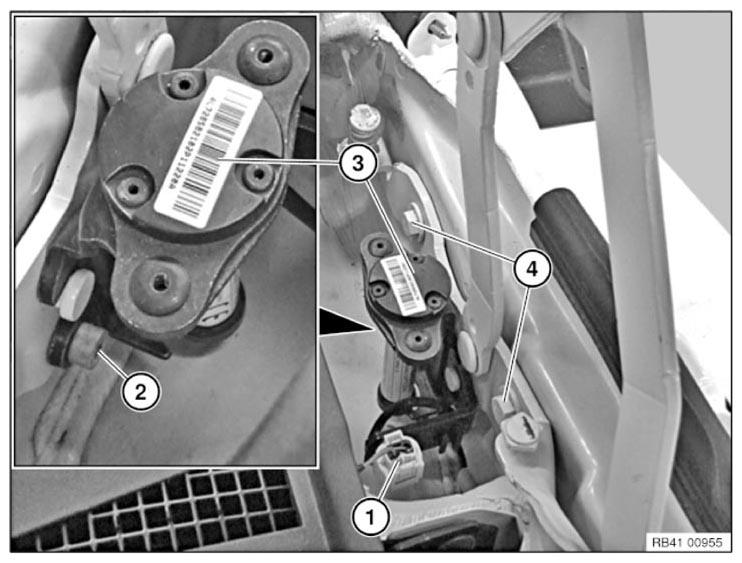

Fig 2: Identifying Actuator, Plug Connection And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release bolt (2) and remove actuator (3).

Tightening torque 41 61 4AZ .

Release screws (4) and remove hinge.

Tightening torque 41 61 2AZ .

Mark severance cuts in accordance with specified dimensions and cut.

Installation note:

Adjust HINGE together with engine compartment lid.
