41 00 510 Checking Rear Body Structure

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REINFORCEMENT PLATE FROM REAR AXLE

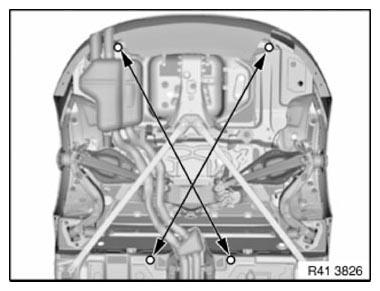

Structural damage can be identified by measuring with a beam trammel.

Here, symmetrically arranged points on the vehicle are measured in diagonal sequence.

If the two measured values are identical, there is no damage to the vehicle.

Fig 1: Measuring Symmetrically Arranged Points In Diagonal Sequence On Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

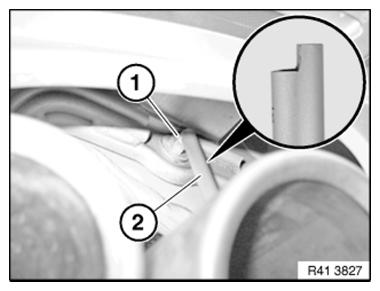

In rear area use adapter (2) on threaded bolt of impact plate (1).

NOTE: If necessary, make recess in adapter yourselves.

Fig 2: Identifying Adapter And Impact Plate

Courtesy of BMW OF NORTH AMERICA, INC.

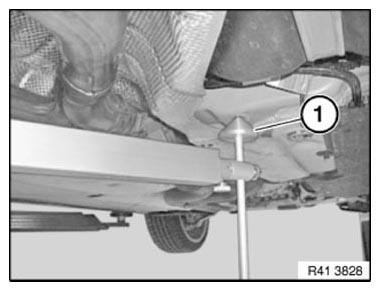

Use conical adapter (1) at attachment point of reinforcement plate.

Fig 3: Identifying Conical Adapter

Courtesy of BMW OF NORTH AMERICA, INC.
