51 71 390 Removing and installing/replacing reinforcement plate on rear axle

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 120

IMPORTANT: Vehicles must not be driven without reinforcement plates.
Driving without the reinforcement plate may damage the vehicle body.
Screws of reinforcement plate must be tightened to torque and then tightened down with special tool 00 9 120 .

Release screws (1) and remove heat shield (2).

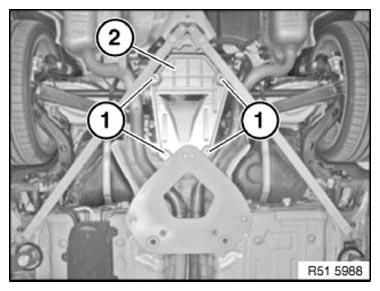

Fig 1: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 71 24AZ .

Unscrew nuts (2).

Tightening torque 51 71 25AZ .

Unscrew nuts (3).

Tightening torque 51 71 26AZ .

Remove thrust panel (reinforcement plate) (4).

Fig 2: Identifying Thrust Panel (Reinforcement Plate) With Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace screw (1).

Tighten down screws (1) to specified torque and then to angle of rotation.
