25 11 235 Replacing bearing bushes for gearshift arm

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the GEARSHIFT ARM .

Push the bearing bushes (1) out.
Coat new bearing bushes with Circolight.
Then press into the gearshift arm until the side faces of the bearing bushes protrude evenly.

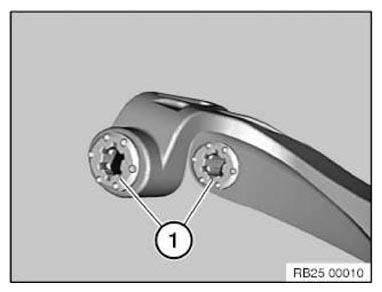

Fig 1: Identifying Bearing Bushes

Courtesy of BMW OF NORTH AMERICA, INC.
