25 11 211 Replacing shift arm for shift lever mount

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SHIFT LEVER

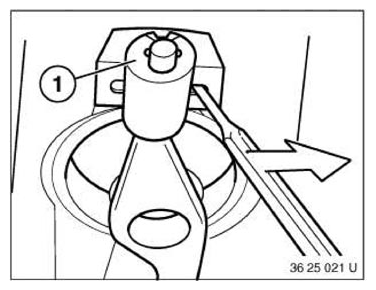

Lever support bearing (1) out of fixture.

Fig 1: Pulling Support Bearing Gearshift Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

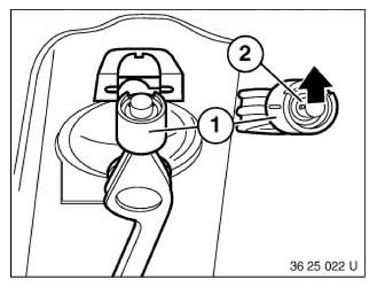

Install support bearing (1) with arrow (2) facing upwards in holder.

Fig 2: Fitting Support Bearing With Recess

Courtesy of BMW OF NORTH AMERICA, INC.

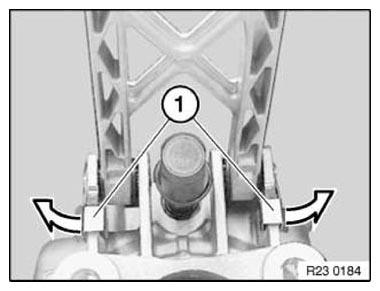

Unlock bearing pin (1) in direction of arrow and remove.

Installation:

Grease bearing pin.

Fig 3: Removing Bearing Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shift arm.

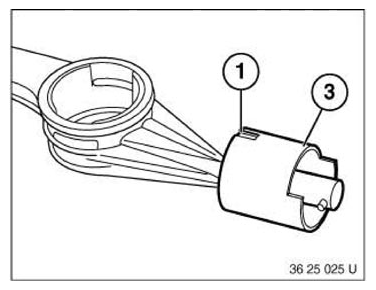

Detach support bearing (1) from shift arm.

Installation:

Grease bearing journal.

Attach support bearing (1) with opening (3) towards rear on shift arm.

Fig 4: Detaching Support Bearing From Gearshift Arm

Courtesy of BMW OF NORTH AMERICA, INC.

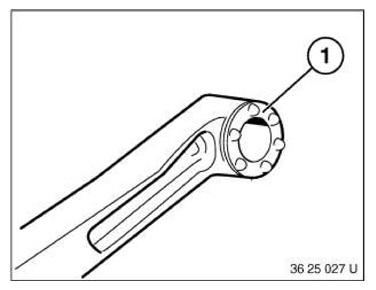

Replace BEARING BUSH (1) if damaged.

Fig 5: Identifying Bearing Bush

Courtesy of BMW OF NORTH AMERICA, INC.
