65 75 055 Removing and installing/replacing emergency power siren with tilt sensor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL ARCH COVER

Release screws (1).

Unfasten plug connection (2) and disconnect.

Remove emergency power siren including bracket (3).

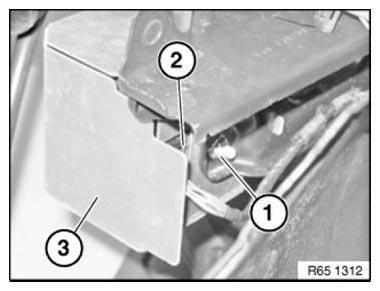

Fig 1: Identifying Emergency Power Siren With Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release nut (1) and remove emergency power siren with tilt sensor (2).

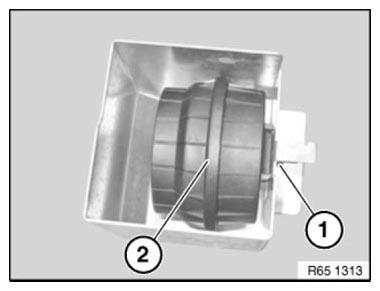

Fig 2: Identifying Tilt Sensor And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
