64 22 137 Removing and installing or replacing left fresh-air grille
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

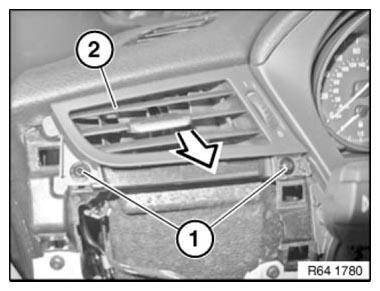

Release screws (1).
Snap out fresh-air grille (2) in direction of arrow.
