51 45 261 Removing and installing/replacing left instrument panel trim

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

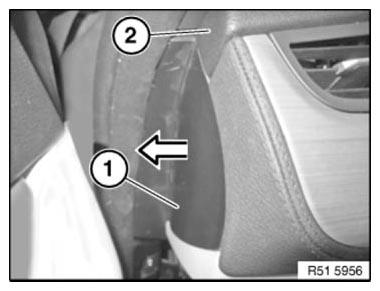

Unclip instrument panel cover (1) in direction of arrow.

Fig 1: Removing Instrument Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on trim (2).

Fig 2: Identifying Screw On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Tape off working area. Risk of damage!

Painted trims are particularly sensitive to damage.

Lever out trim (1) with special tool 00 9 317 at mounting points (2) and remove.

Unlock plug connection behind and disconnect.

Fig 3: Removing Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace retainers (1).

Fig 4: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove LIGHT SWITCH UNIT .
