64 51 591 Removing and installing/replacing evaporator

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 310

Necessary preliminary tasks:

Remove HEATING UNIT

Release screw (1).

Tightening torque 64 53 3AZ .

Remove adapter plate (2).

Release screws (4).

Tightening torque 64 11 1AZ .

Remove bulkhead adapter (3).

Fig 1: Identifying Bulkhead Adapter With Adapter Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

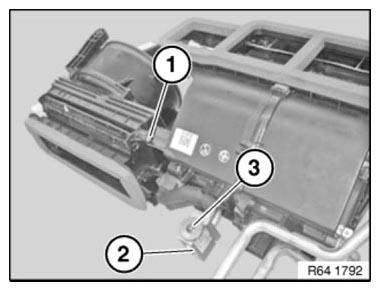

Release screw (1).

Replacement:

Release screws (2) on expansion valve (3).

Tightening torque 64 53 9AZ .

Remove expansion valve (3).

Installation:

Replace sealing rings.

Use special tool 00 9 310 to mount sealing rings without damaging them.

Fig 2: Identifying Expansion Valve With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

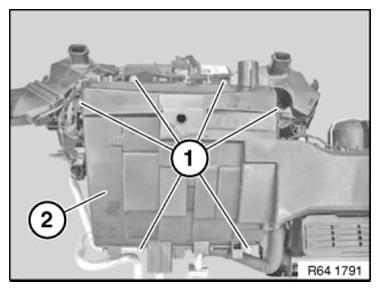

Release screws (1).

Unclip associated retaining lugs on lower housing section (2).

Remove lower housing section (2) and place to one side.

Fig 3: Identifying Lower Housing Section With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

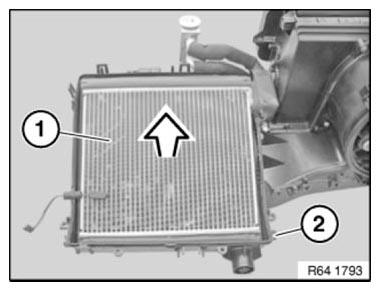

Pull evaporator (1) in direction of arrow out of upper housing section (2).

Fig 4: Pulling Out Evaporator From Upper Housing Section

Courtesy of BMW OF NORTH AMERICA, INC.
