13 71 170 Removing and installing/replacing rear air duct (N54, N54T)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Levering at the top of the air duct results in risk of damage!
Air duct may break!

Necessary preliminary tasks:

Remove left TRAILING LINK .
Remove front UNDERBODY PROTECTION .

NOTE: The overview shows the removed engine for better clarity.

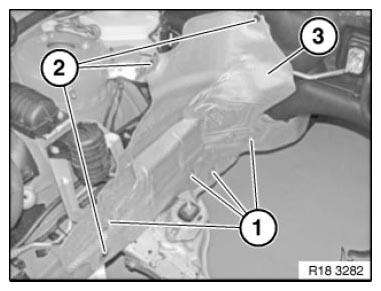

Release sheet metal nuts (1).

Unfasten screws (2).

Remove heat shield (3).

Fig 1: Identifying Heat Shield, Sheet Metal Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect line (1).

Unlock connector (2) and remove.

Unlock and disconnect snap fastener (3).

Fig 2: Identifying Snap Fastener, Connector And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Turn the lock (1) until the arrows line up.

Fig 3: Identifying Charge Air Duct Lock

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull the air duct off from the top!
Risk of damage!
Air duct may break!

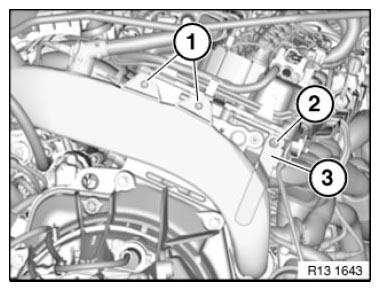

Release screw (1).

Tightening torque 13 71 8AZ .

Release screw (2) and remove holder (3).

Tightening torque 13 71 12AZ .

NOTE: Illustration with engine removed.

Fig 4: Identifying Rear Air Duct Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off air duct (1) from exhaust turbocharger, feed out and remove.

NOTE: Illustration with engine removed.

Fig 5: Removing Air Duct From Exhaust Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check sealing ring (1) for damage.

Replace damaged sealing ring.

Make sure sealing ring (1) is correctly seated in air duct (2).

Fig 6: Identifying Sealing Ring And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check air duct for tightness.
