22 11 110 Replacing left engine support arm (N54)
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure engine in INSTALLATION POSITION
- Remove underbody protection at front and rear. See REMOVING FRONT UNDERBODY PROTECTION and REMOVING REAR UNDERBODY PROTECTION .

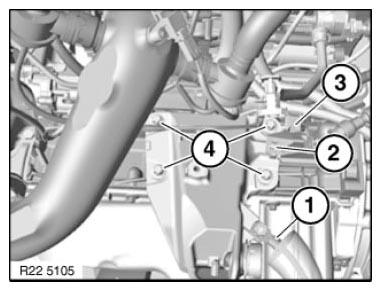

Release grounding strap (1) from engine support arm.
Release screw (2).
Take off holder (3).
Release screws (4).
Remove engine support arm.
Tightening torque 22 11 3AZ
