11 00 670 Securing engine in installation position (N54, N54T)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 6 100
00 6 050
00 6 130

WARNING: Danger of injury!
Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

IMPORTANT: Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.

NOTE:

NUMBERING SYSTEM FOR SPECIAL TOOLS has been re-encoded.

Necessary preliminary tasks:

SECURE THE ENGINE COMPARTMENT LID IN THE SERVICE POSITION .

Fig 1: Assembling Cross Member (00 6 100) With Rests And Adapters (00 6 130)

Assemble cross-member 00 6 100 with rests 00 6 050 in conjunction with adapters 00 6 130

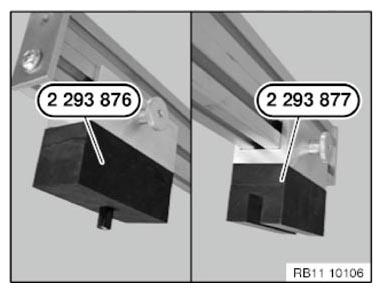

Supplement cross-member with feet 2 293 876 at front and 2 293 877 at rear.

Fig 2: Supplementing Cross Member

Graphic N20

Remove rubber plugs (1) on left and right sides.

Fig 3: Identifying Engine Rubber Plug

Graphic N20

When fitting the cross-member, make sure the bolt of foot 2 293 876 is secured in opening (1).

IMPORTANT: Risk of damage!
Position cross-member 00 6 100 with a 2nd person help on designated areas (1,2) of side wall.

Fig 4: Identifying Engine Opening

The contact points (1, 2) on the right side are shown.

Make sure the bolt is secured at contact point (1).

Fig 5: Identifying Contact Points (Right Side)

Screw in towing hook (1).

Fig 6: Identifying Towing Hook

Tighten down all the cross-member connections.

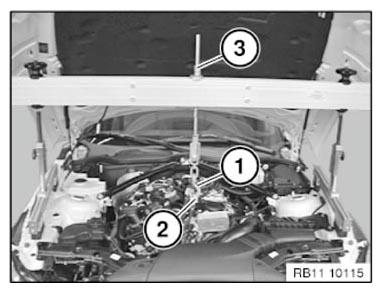

Suspend chain (1) from towing hook (2) and light pre-tension with spindle (3).

Fig 7: Suspending Chain From Towing Hook

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.

Unscrew nuts (1).

Raise engine approx. 10 mm with cross member.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 8: Identifying Cross Member Nut

02 1111 engine block
